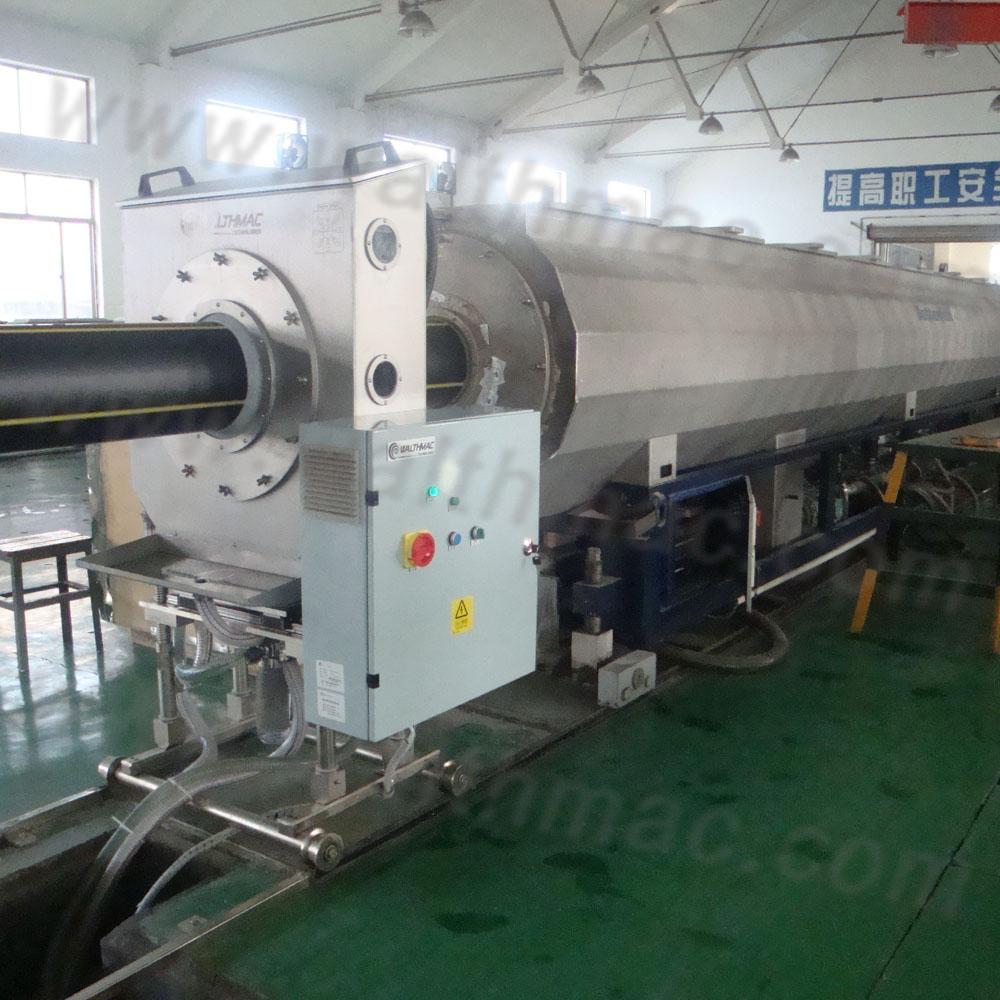

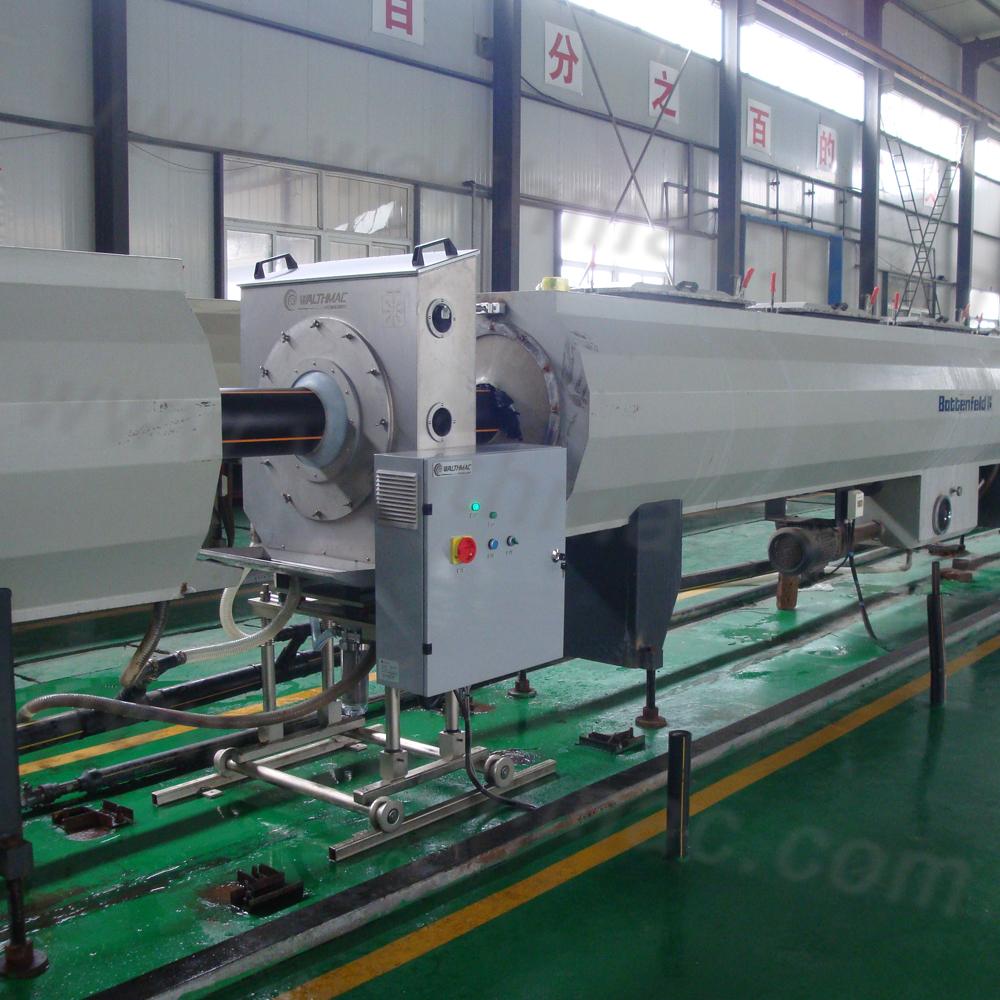

pipe wall thickness testing system for the pipe extrusion industry

Description
Since 2009 we have been a worldwide supplier of pipe wall thickness testing system for the pipe extrusion industry. Due to technical innovations we can offer a unique range of solutions for every measuring requirement. A fully digital evaluation and the further processing of ultrasonic signals allow a reproducibility of the results. The choice of measuring position and measuring system is defined by the respective requirement. With our know-how we are the market leader for measuring in the extrusion industry and we can influence your extrusion process just after the start-up. Ultrasonic and gravimetric system formed a close regulation circuit for the quality of the final product.

Advantages

1. Traceability

The pipe wall thickness testing system is used for monitoring and recording the production of plastic pipe in the whole production process with the ability of marking the unqualified pipe automatically. So you can know the production and quality situation without browsing the production records. If there are some potential quality hazards of pipes, the workers only need to find out the pipe number in warehouse without going to the production line to handle the unqualified pipes. Even the pipes have been sent to construction site, you can also find out unqualified pipes according to numbers. With this traceability, our pipe wall thickness testing system for the pipe extrusion industry decreases the high requirement of responsibility. More over, this kind of system can trace back the production record to half a month or six month ago. (Customer needs to match necessary pipeline printer for our system to identify unqualified pipes.)

2. Non-contact measurement

Non-contact measurement makes no wearing parts. It means that our pipe wall thickness testing system doesn't need to move probe or tube reducing ring when measuring different pipe diameters. The only thing you need to do is to change the rubber sheet. Thus it avoids the probe to be damaged by human.

Specifications
Probe: ULTRAMAC 450-8T

Measurement range of external diameter: 160-450mm
