automatic ultrasonic thickness gauge used in the area of all plastic pipes

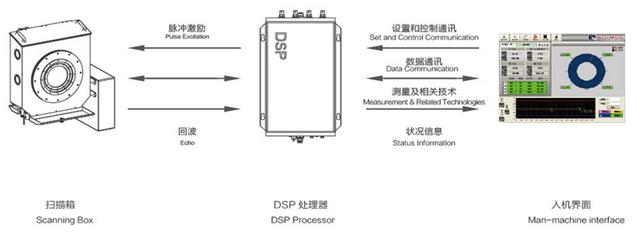

The automatic ultrasonic thickness gauge is a kind of online thickness measuring system that is used in the area of all plastic pipes. This plastic pipe thickness gauge is mainly composed of scanning box, DSP signal processor, industrial personal computer and other hardware. Among these important parts, there is a probe in the scanning box which is used to send ultrasonic wave to the surface of tubular product.

In the past, the market in this area was monopolized by foreign companies. Through many years targeted research and development and powerful marketing, we have occupied and cut down their market share gradually. By 2013, our market share in home has surpassed foreign companies. The main reason is that our products is superior to others.

1. Measurement accuracy and stability

Our automatic ultrasonic thickness gauge adopts precise and stable hardware to make the collection of production data more correct and stable. The measurement precision is 0.001mm, which is higher than competitor (0.01mm).

2. Low power consumption

The signal processor of our plastic pipe thickness gauge utilizes the dedicated chip for DSP processor of TI 6000 series. The processing speed and processing capacity is higher than competitor. The most important is that the power consumption is less than 30w that is much lower than competitor’s 70W..

3. Fast testing

Our automatic ultrasonic thickness gauge is featured of high speed testing. The scanning speed is more than 2000 times per second when measuring small tubes. Also our equipment has the measuring ability of high speed production.

4. Low price

The price positioning of our plastic pipe thickness gauge is 55% lower than foreign companies.

5. High frequency

The transducer frequency is 0.5-20MHz that can be used for measuring different kinds of tubular products and at the same time it can satisfy the requirements of measuring accuracy and measuring speed.

6. Suitable for different linear speed

The sensitivity of the ultrasonic processor with our technology can cover all surfaces of pipes and measure different pipe linear speed. The highest measuring linear speed can reach to 100m/min.

7. Strong adaptable

The automatic ultrasonic thickness gauge shows a strong ability to adapt to market for its stable and high precision measurement that is popular with users.

8. High market share

Our plastic pipe thickness gauge is sold to Russia and the Commonwealth of the Independent States. Also the CE certification of our equipment is under way.

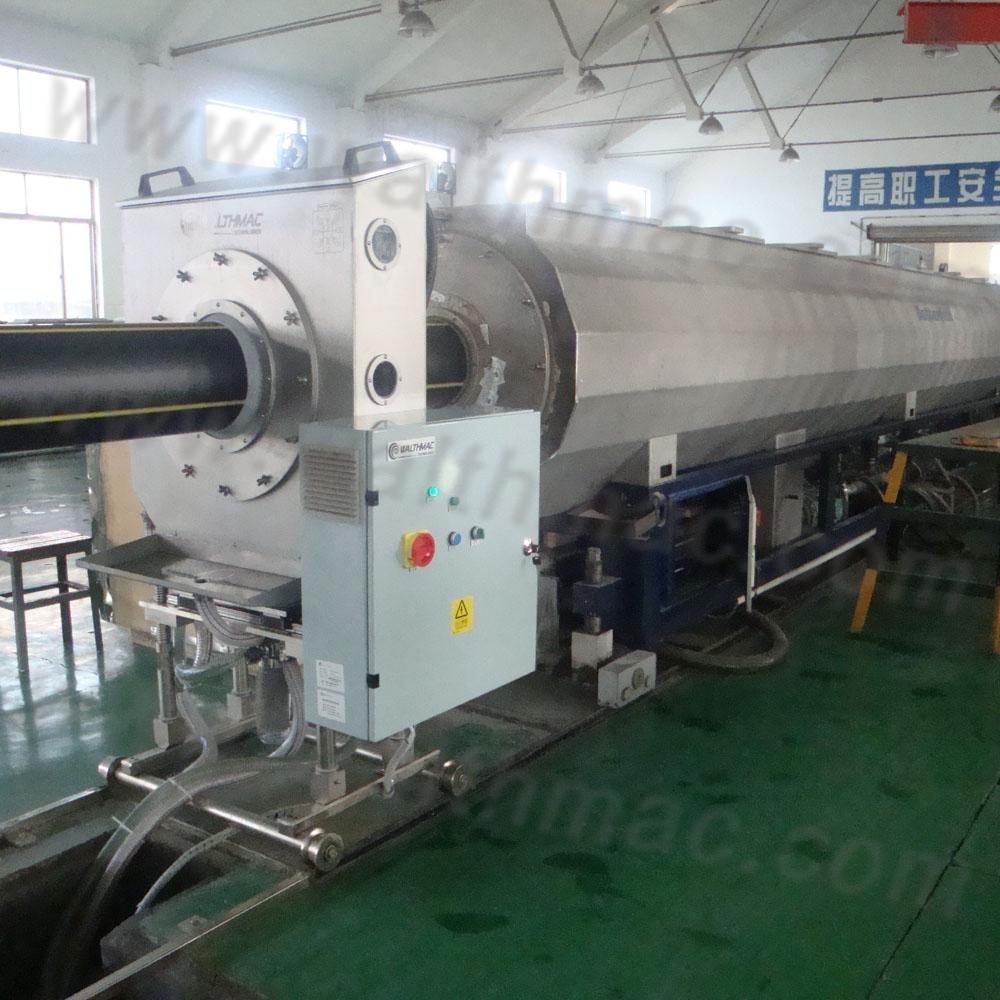

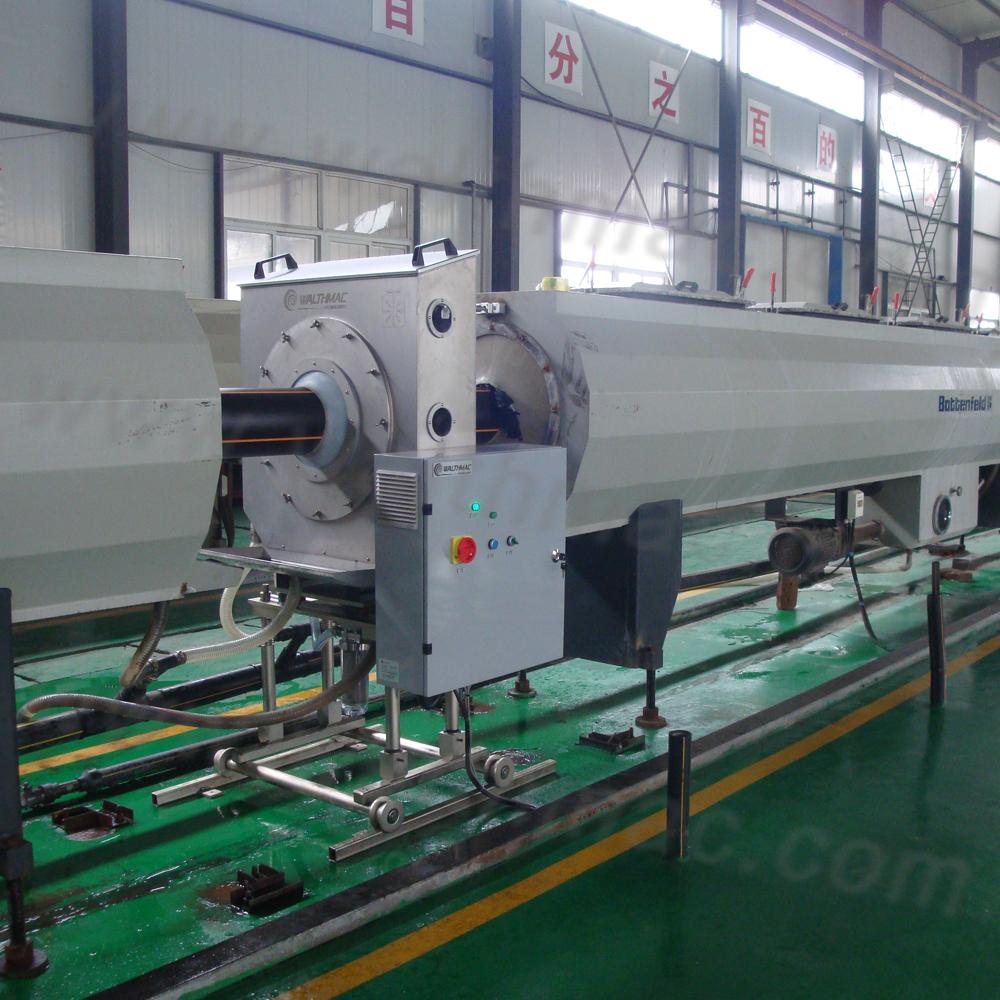

This kind of automatic ultrasonic thickness gauge is usually installed behind the first vacuum box, which can efficiently save the correction time.

Probe: ULTRAMAC 315-8T

We only charge 70% price by contrast with Germany competitor and at the same time, we promise our clients enjoy high quality product and service. Measurement range of external diameter: 110-315mm
