plastic pipe thickness gauge system


Our company is a professional plastic pipe thickness gauge system supplier in China. It is used for the uninterrupted real-time measuring and monitoring of the change of the thickness, outer diameter, eccentricity and out-of-roundness in the whole production process of gas pipe, water supply pipe, conduit pipe, medical catheter, etc. Therefore, the quality risks can be completely eliminated in production process. The real-time warning function of the plastic tube thickness measuring equipment is convenient for worker to adjust the production line quickly to avoid producing the unqualified pipe, thus efficiently reduce the consumption of raw material and improve the product quality. Our plastic pipe thickness measuring system has the function of recording and archiving the complete production data that makes the user can access to any time production data and manage the production conveniently. The statistical report of pipe quality can be printed out as a valid certification of the pipe quality.

System composition

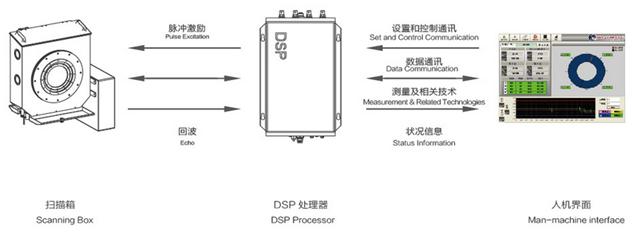

The plastic tube is composed of scanning box, DSP signal processor, industrial personal computer and other hardware.

Main Functions

1.Real-time thickness and external diameter measurement for plastic pipe.
2.Automatic warming function for plastic pipe overproof and auto-saving function for alarming information.

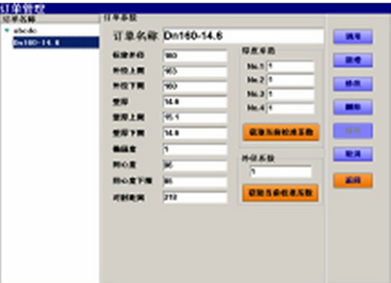

3. Plastic tube thickness measuring equipment is used for managing and analyzing the factory formula and order setting.
4. The plastic pipe thickness gauge system can adjust the quality problems (history curve)

5 .Automatic generate the statistical statement of quality report which can be print out.

1. The key parts of our plastic tube thickness measuring equipment are imported from USA.

2. The highest measurement accuracy: 0.001mm; the smallest measurement external diameter: 0.25mm; the biggest external diameter: 1600mm.

3. The power consumption of measurement is less than 30W.

4. The historical data of production measurement can be saved for a long time.

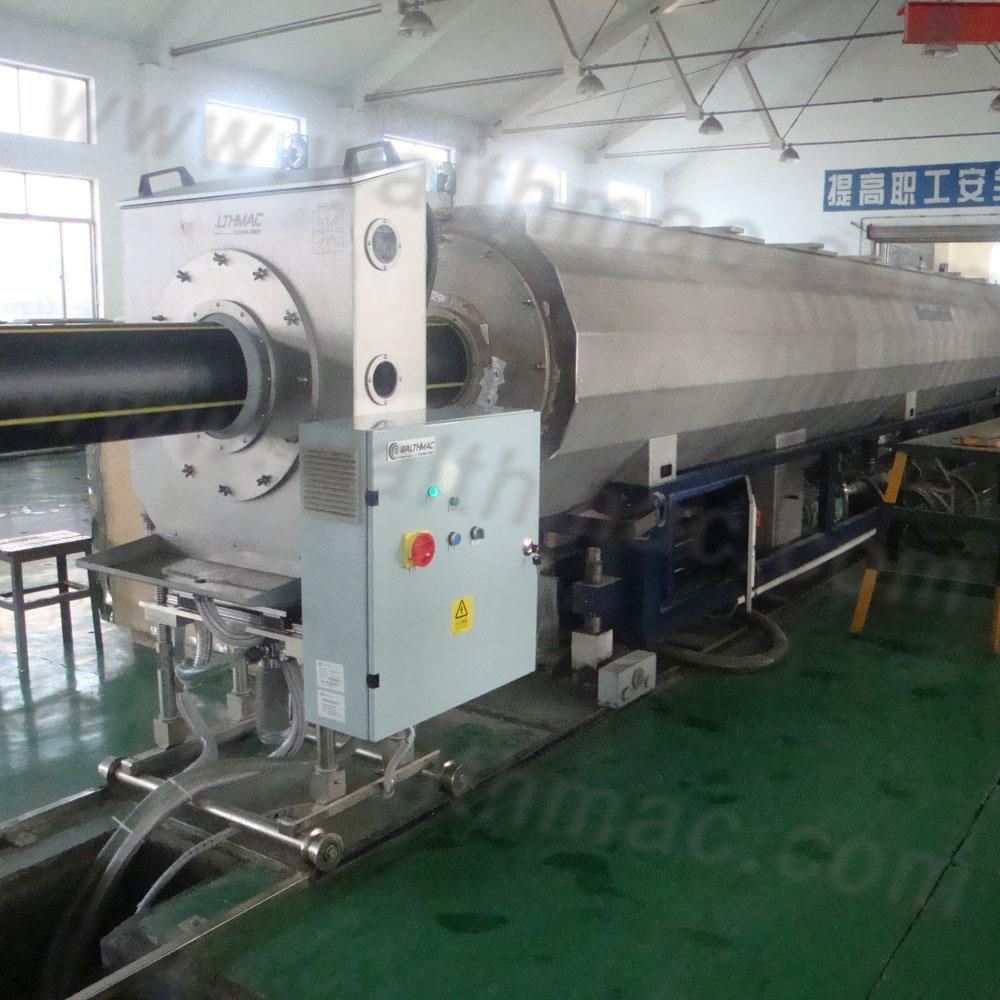

Our plastic tube thickness measuring equipment is mainly used in the extrusion production line for plastic pipe. It is usually installed on the behind of the first vacuum box that can efficiently save the correction time of unqualified pipe.

Probe type: US1024

Measurement range of external diameter: 3.75-24mm
