pipeline thickness testing system for plastic extrusion production line

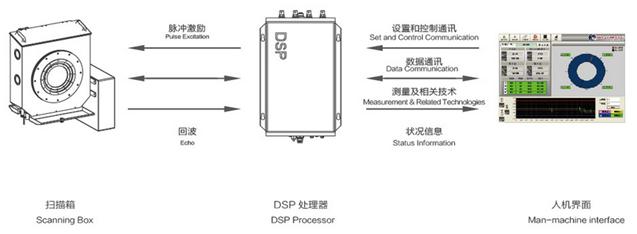

This pipeline thickness testing system is composed of scanning, DSP signal processor, industrial personal computer and other hardware.

Scanning Box
The scanning box is equipped with ultrasonic measuring probe inside and also has a cooling and purging device for probe. The ultrasonic probe converts DSP signal processing pulse incentive energy into ultrasonic wave and sends it out, and then convert echo small signals into weak electricity signals and sends it back to the DSP signal processor.

Main Function of DSP Signal Processor

1.Automatic search

DSP of pipeline thickness testing system can quickly find out the echo and then adjust the capture window accordingly.

2.Automatic setting

DSP for measuring system for pipeline can read the pattern of ultrasonic wave and find out the right echo.

3.Automatic tracking

When the product changes, DSP can instantly adjust the capture window so as to track and lock the right echo.

4.Highest precision

DSP of pipeline thickness testing system can automatically capture and calculate all echoes internally, which really realize a series of processing processes such as full-automatic scanning, capturing, adjustment, measurement and calculation, and always keep high consistency along with the changing of products and settings, therefore, can provide higher precision measuring values of average wall-thickness and concentricity.

5.Without human intervention

DSP for measuring system for pipeline can provide unique automatic setting technology.

System Structure

Man-machine interaction (MMI) - display control hardware and software
The DATASE-15H industrial tablet computer with DATASE1000R ultrasonic measurement control software is configured, which is used as the tool of data interchange, data acquisition and data storage. It uses the high-end 12 or 15-inch TFT color touch LCD screen. The whole pipeline thickness testing system adopts the ultra-thin and no fan structure with light weight and good heat dissipation; therefore, it can be used in a continuous operation environment with dusty, high electro-magnetic interference and high ambient temperature. The measuring system for pipeline has a large-capacity hard disk which can store production data for a long time.

Probe: ULTRAMAC 063-4T/2

Measurement range of external diameter: 3.75-63mm

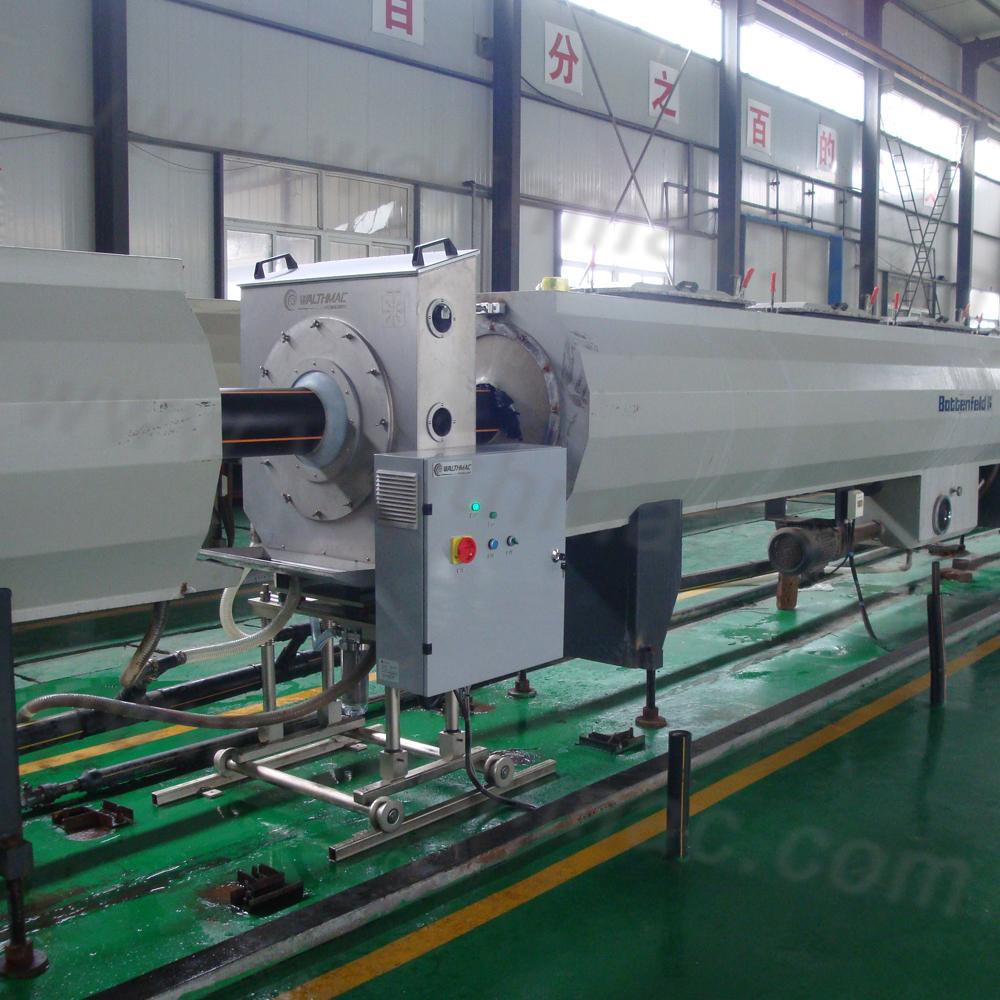

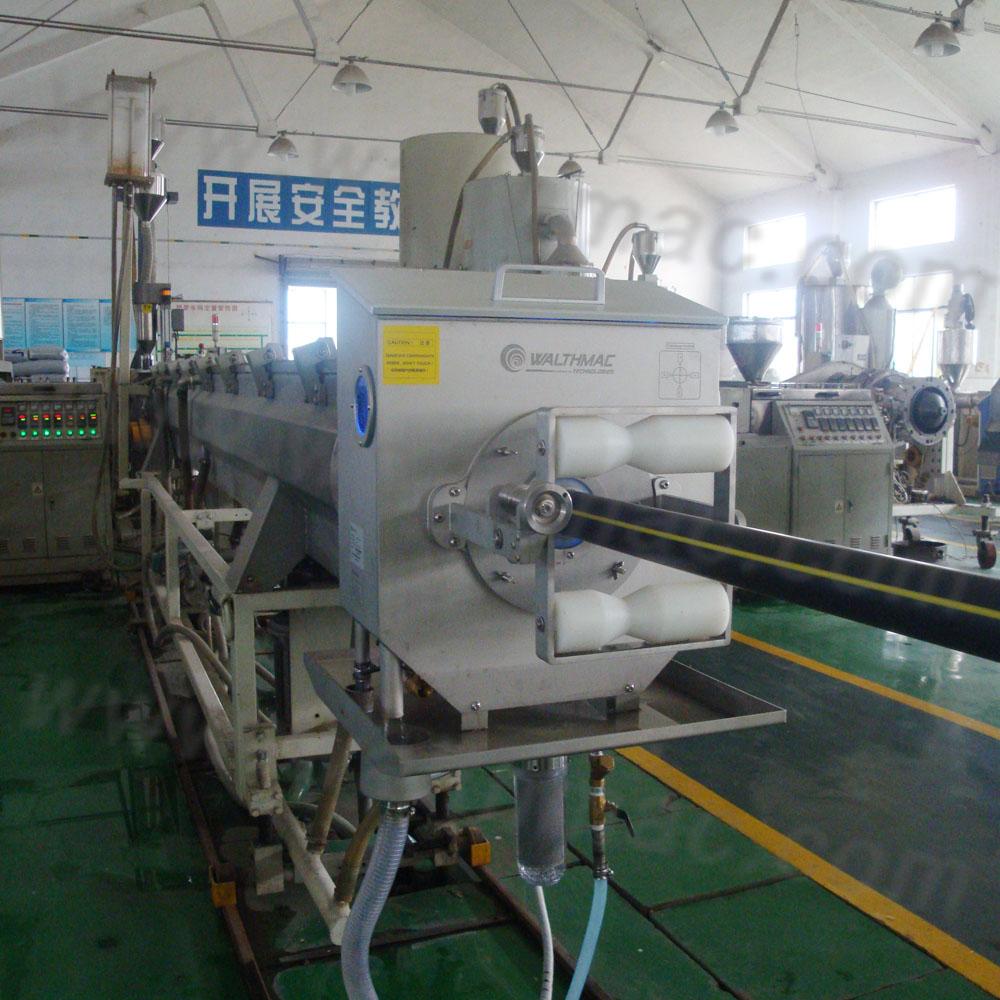

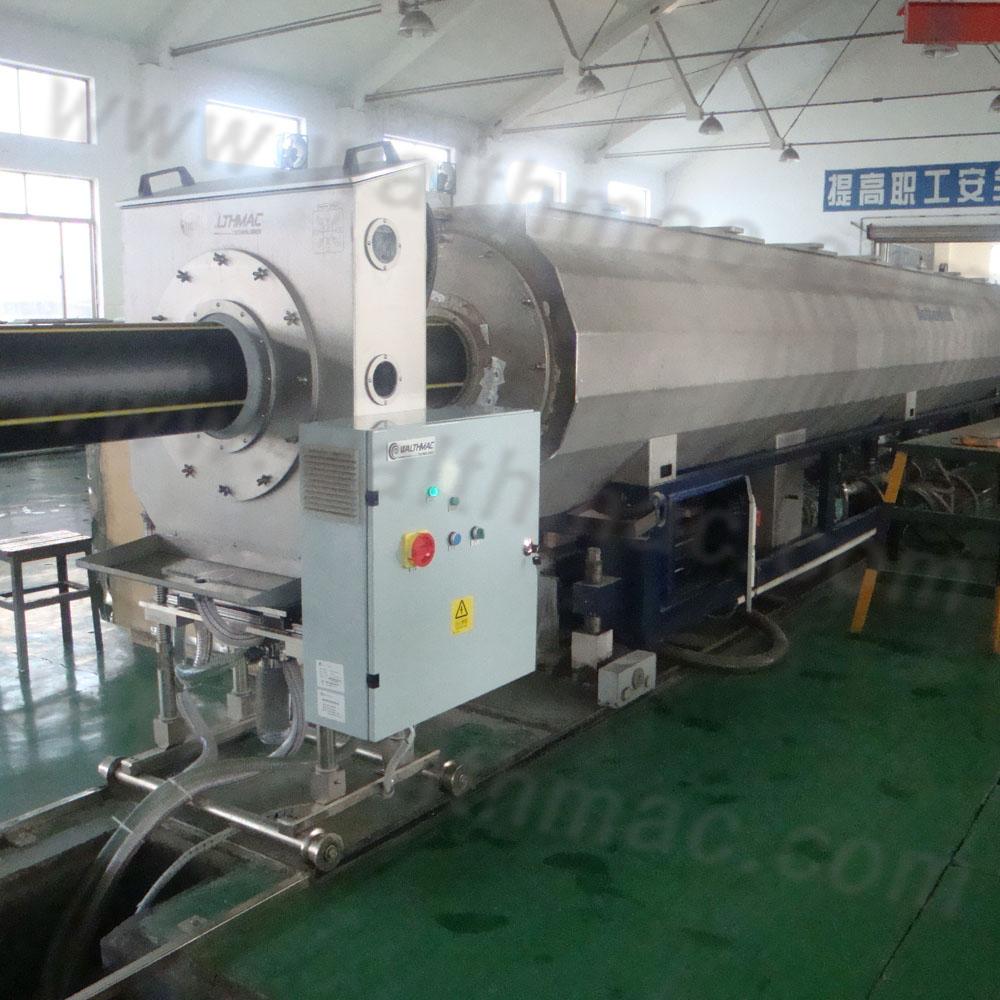

Our pipeline thickness testing system is suitable for extrusion production line, which is usually installed behind the first vacuum box and can efficiently save the correction time of unqualified pipe.
