plastic pipe thickness testing device manufacturer in China

We are a professional plastic pipe thickness testing device manufacturer in China. This kind of product is used for the uninterrupted real-time measuring and monitoring of the change of the thickness, outer diameter, eccentricity and out-of-roundness in the whole production process of plastic pipes.

1. Lower and completely eliminate the quality risks in the production of plastic pipes and improve product quality

2. Shorten the start-up time, reduce the rejection ratio

3. The plastic pipe thickness testing device is featured of complete recording and filing of production data

4. Automatically generate a statistics form of pipe quality

Probe: ULTRAMAC 1200-16T

Measurement of external diameter: 800-1200mm

Working Principle

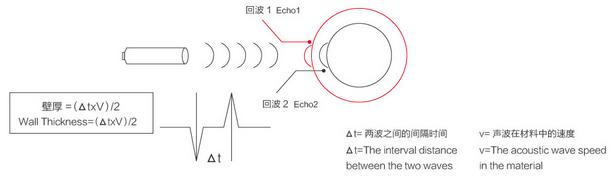

The measurement principle of probe is as following:

The ultrasonic probe distribution structure is as following:

1. The built-in fixed ultrasonic transmitter can measure various range of pipe wall thickness.

2. The number of ultrasonic probe: 4, 8, 16

3. The protection grade of the ultrasonic probe is IP68, thus it can be directly fixed to the scanning box, and whole installed inside of the water tank (determined on specific model).

4. The probe of the online thickness gauge for plastic pipe can measure the thickness of multi-layer pipe, and the thickness of each layer can be displayed separately (optional).
