plastic pipe wall thickness measurement system has the function of recording and filing the production data
Description
The ultrasonic thickness measuring device is used for the
uninterrupted real-time measuring and monitoring of the change of the
thickness, outer diameter, eccentricity and out-of-roundness in the
whole production process of gas pipe, water supply pipe, conduit pipe,
medical catheter, etc. Therefore, the quality risks can be completely
eliminated in production process.
Components

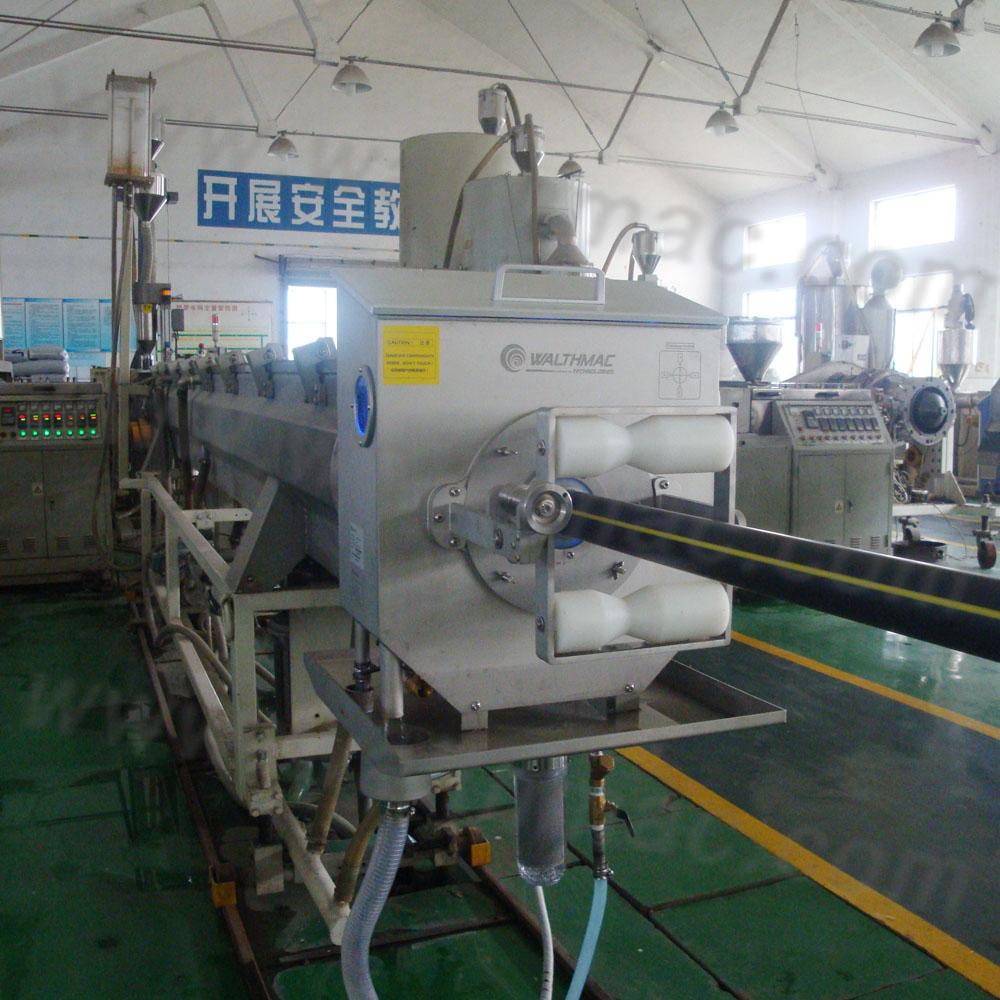

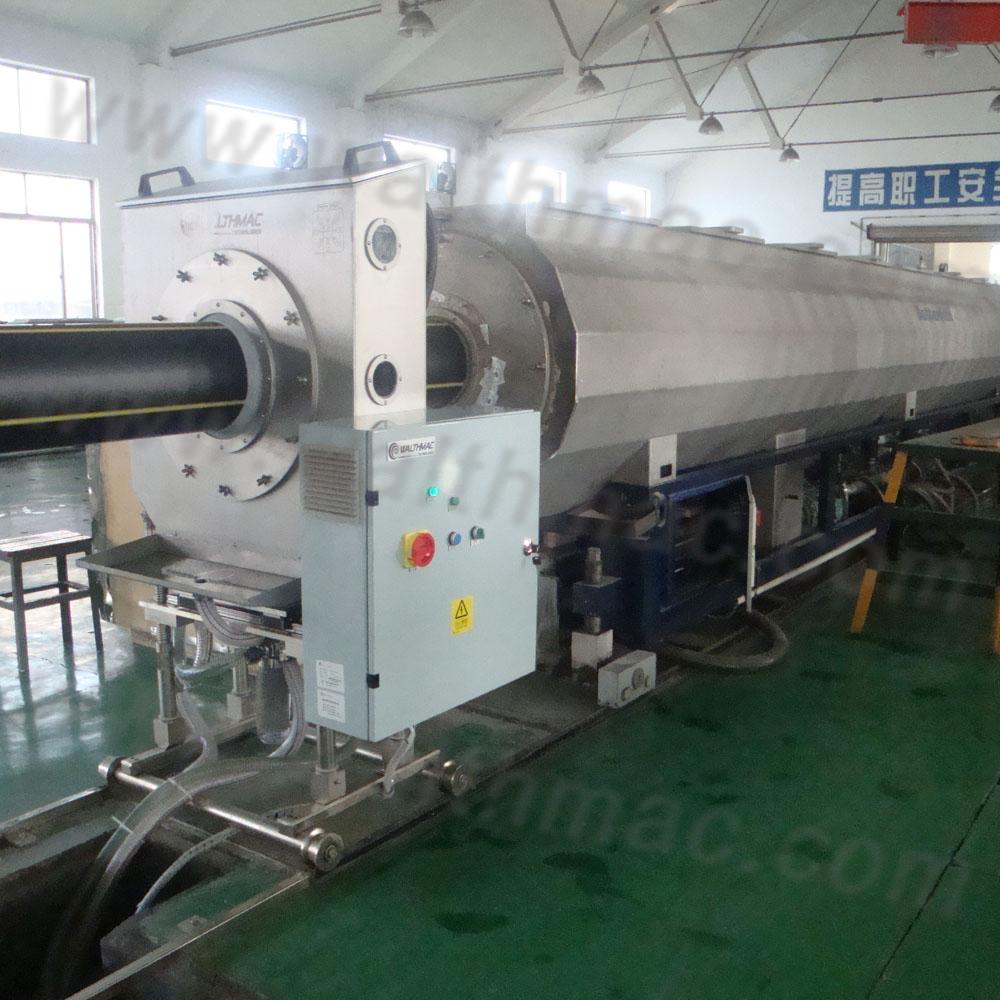

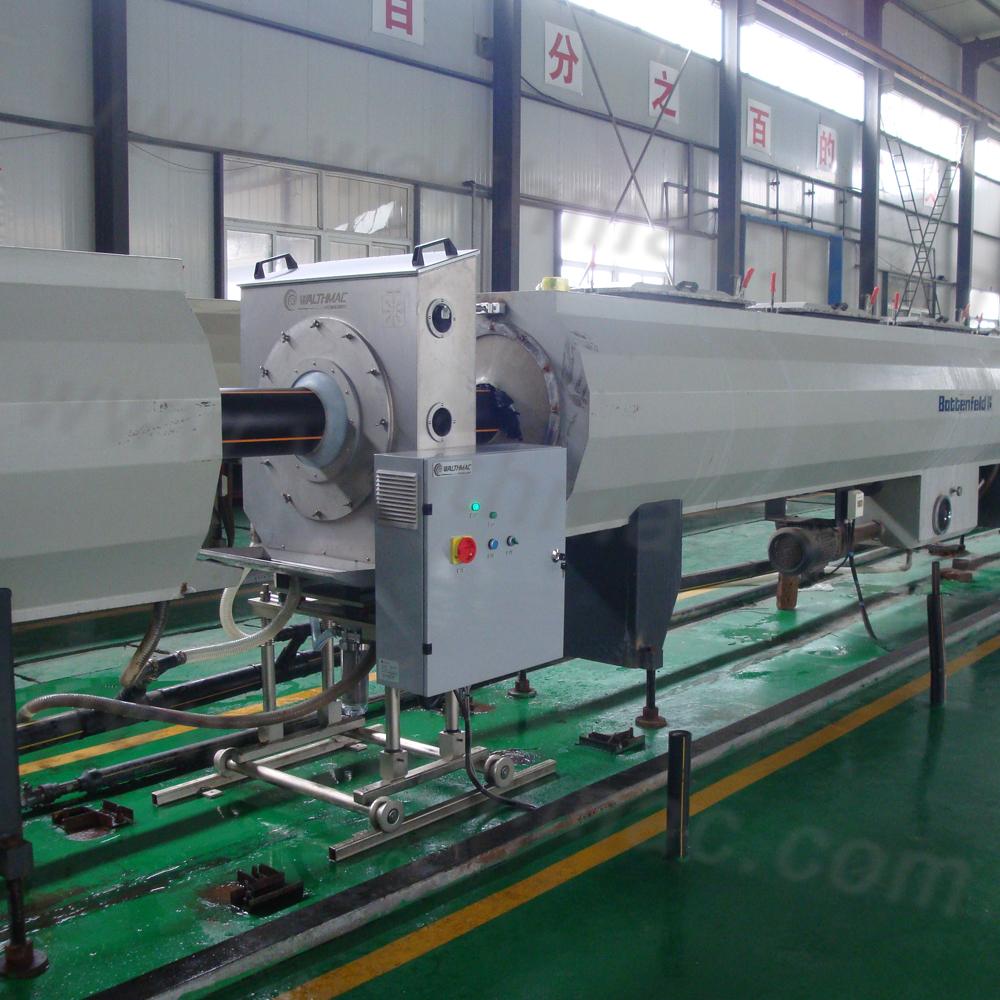

The ultrasonic thickness measuring device is mainly composed of
scanning box, DSP signal processor, industrial personal computer and
other hardware parts. The scanning box of this plastic pipe wall
thickness measurement system has an ultrasonic probe inside that is
used to send ultrasonic wave signal to the surface of the tubular
products.
Advantages
1. The device with real-time warning function can make workers
quickly adjust the production line and avoid producing unqualified
pipes, thus efficiently reduce the material consumption and improve the
product quality.
2. This plastic pipe wall thickness measurement system has the function of recording and filing the production data. Thus the workers can easily consult the data of any time. Also our ultrasonic thickness measuring device can print out the quality report as a product quality certificate.

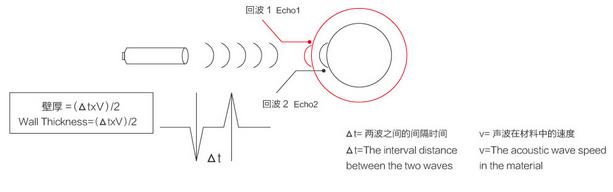

Working Principle
The measurement principle of probe is as following:
1. The built-in fixed ultrasonic transmitter can measure various range of pipe wall thickness.
2. The number of ultrasonic probe: 4, 8, 16
3. The protection grade of the ultrasonic probe is IP68, thus it can be directly fixed to the scanning box, and whole installed inside of the water tank (determined on specific model).
4. The probe of the online thickness gauge for plastic pipe can measure the thickness of multi-layer pipe, and the thickness of each layer can be displayed separately (optional).
Specifications
Probe: ULTRAMAC 1600-16T
Measurement range of external diameter: 800-1600mmm
