ultrasonic wall thickness measuring equipment in pipe extrusion

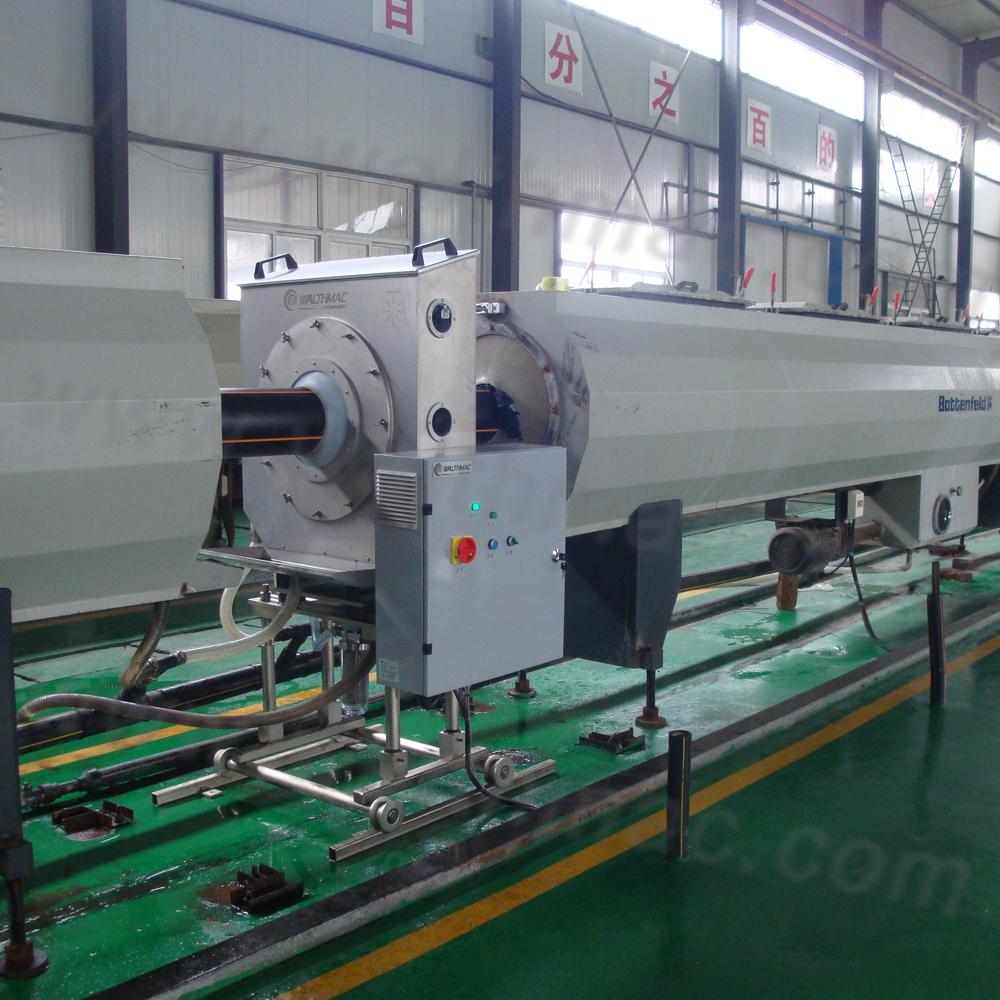

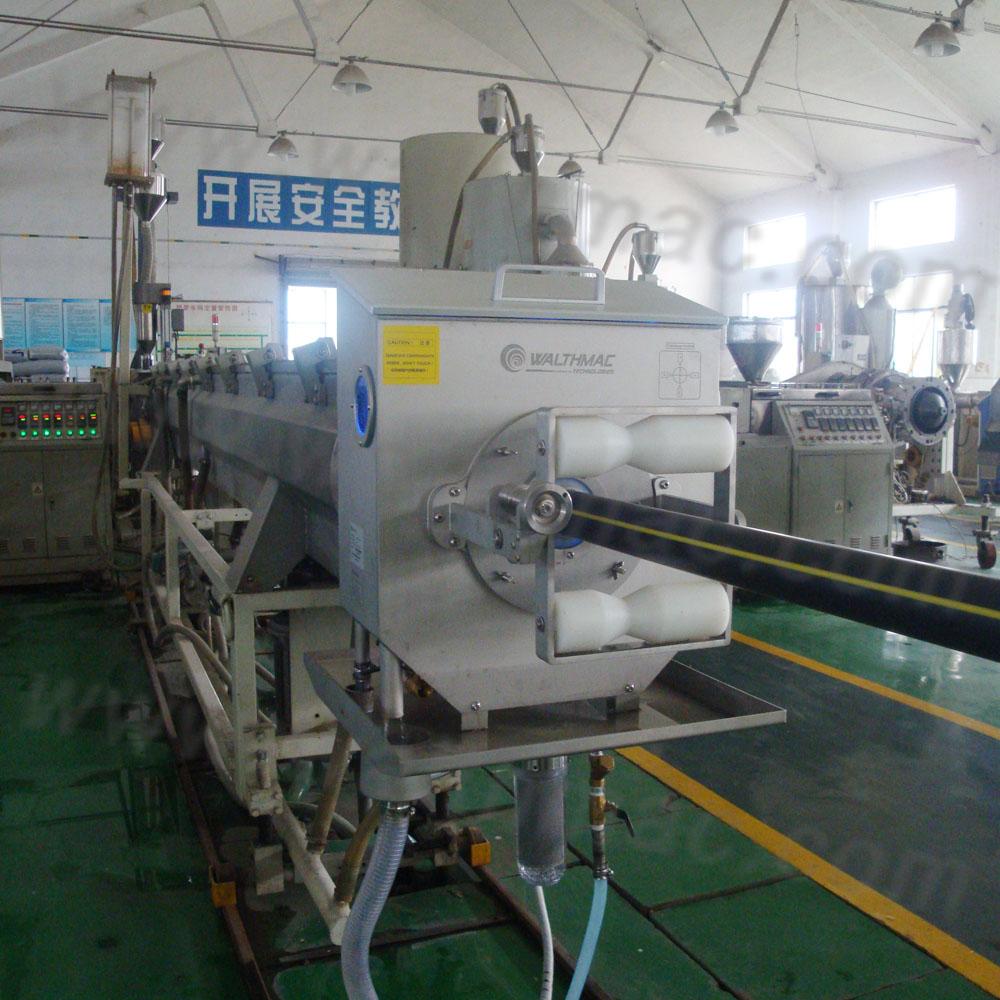

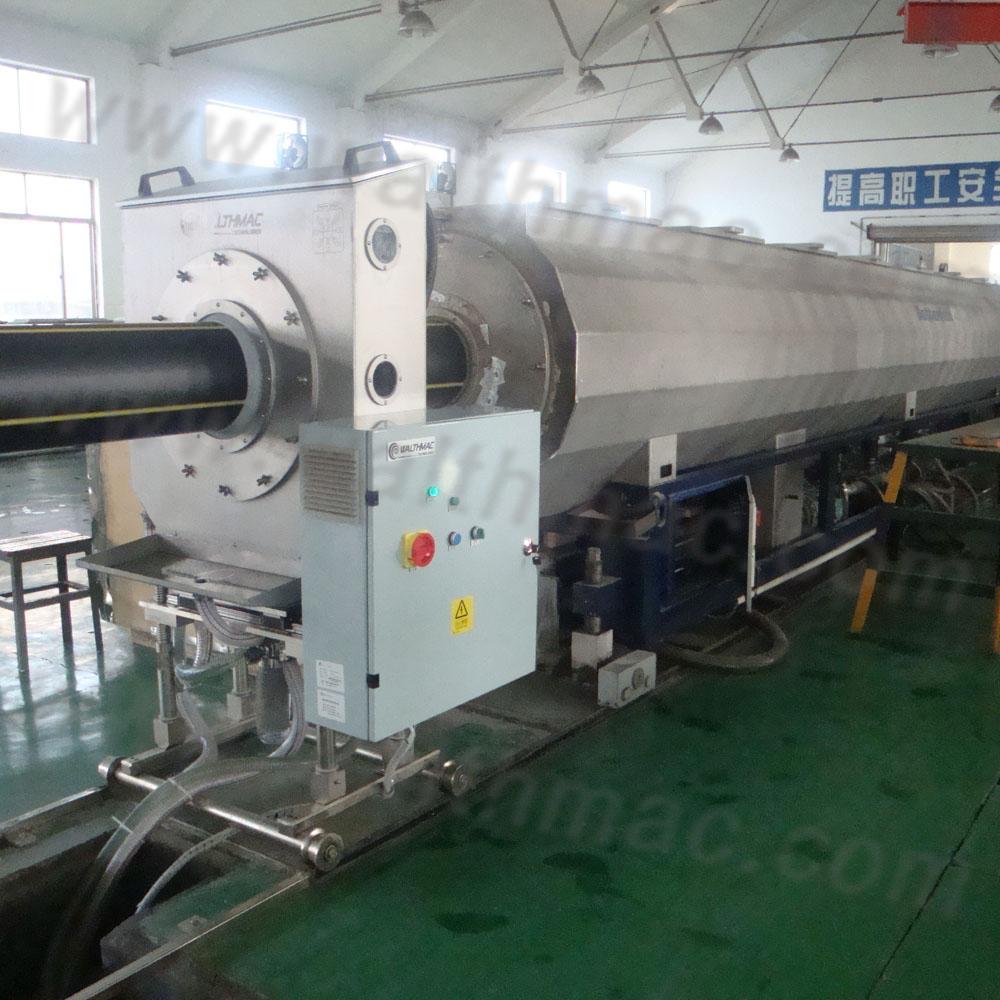

Description
The ultrasonic wall thickness measuring equipment in pipe extrusion is mainly used for the uninterrupted online real-time measuring and monitoring of the change of the thickness, outer diameter, eccentricity and out-of-roundness in the whole production process of gas pipe, water supply pipe, conduit pipe, medical catheter, etc. Therefore, the quality risks can be completely eliminated in production process.

Advantages
1. Lower and completely eliminate the quality risks in the production of plastic pipes and improve product quality

2. Shorten the start-up time, reduce the rejection ratio

3. The ultrasonic wall thickness measuring equipment in pipe extrusion is featured of complete recording and filing of production data

4. Automatically generate a statistics form of pipe quality

Working Principle

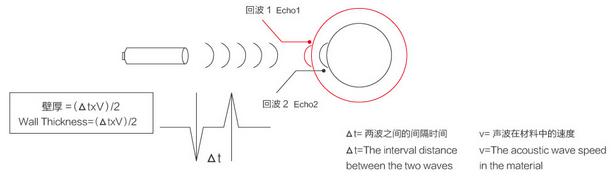

The measurement principle of probe is as following:
The ultrasonic probe distribution structure is as following:

1. The built-in fixed ultrasonic transmitter can measure various range of pipe wall thickness.

2. The number of ultrasonic probe: 4, 8, 16

3. The protection grade of the ultrasonic probe is IP68, thus it can be directly fixed to the scanning box, and whole installed inside of the water tank (determined on specific model).

4. The probe of the ultrasonic wall thickness measuring equipment in pipe extrusion can measure the thickness of multi-layer pipe, and the thickness of each layer can be displayed separately (optional).

Specification
Probe: ULTRAMAC 125-4T:4

Measurement range of external diameter: 20-125mm
